Description:

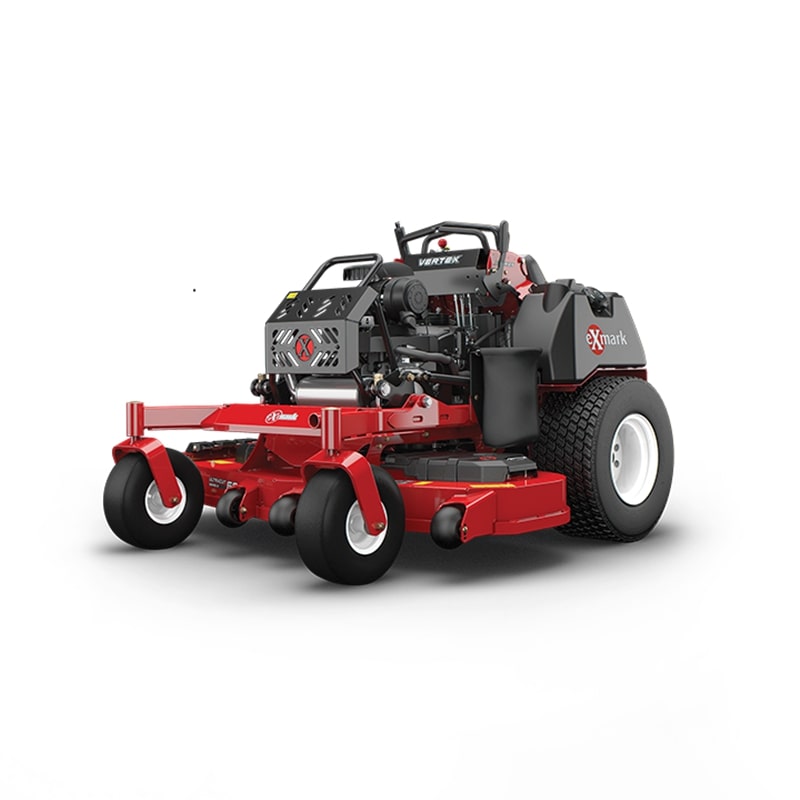

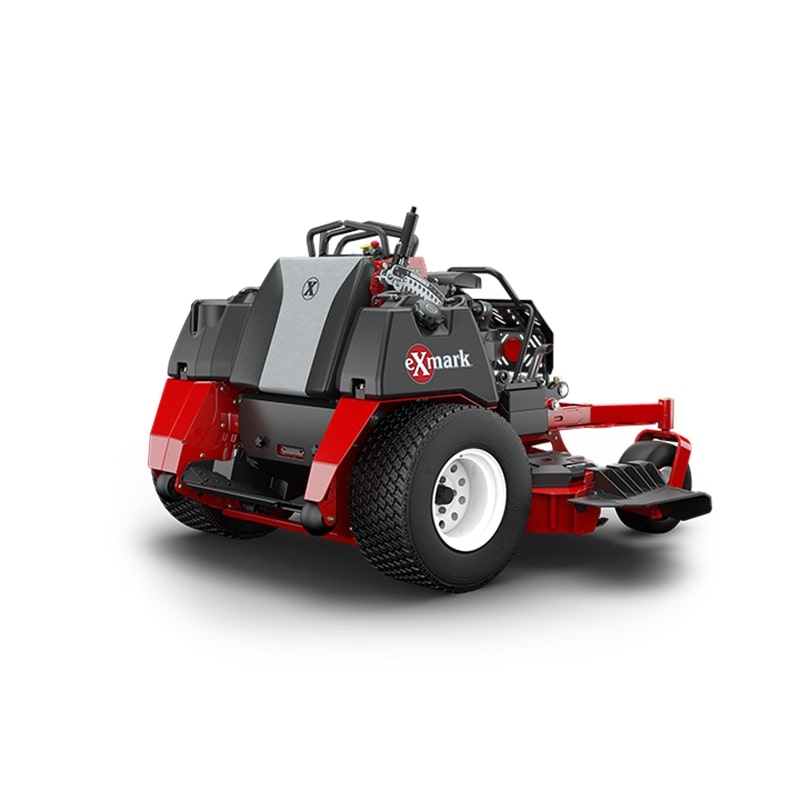

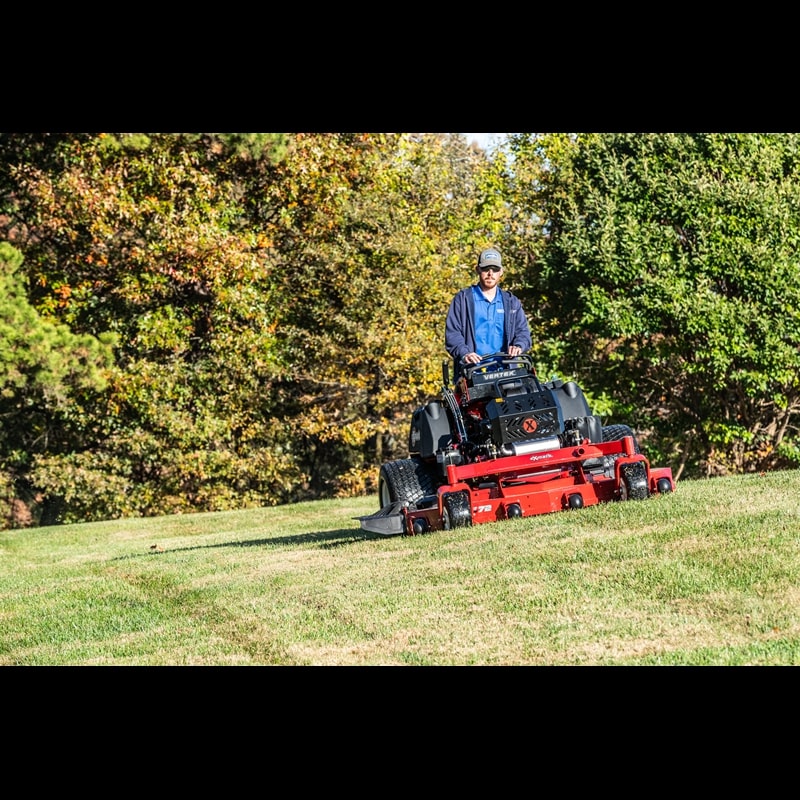

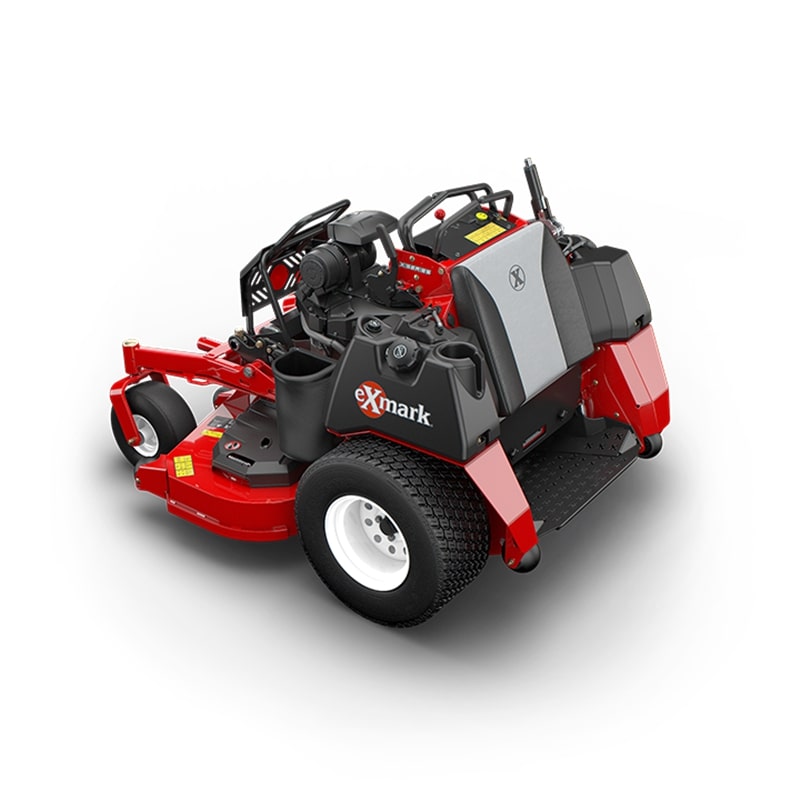

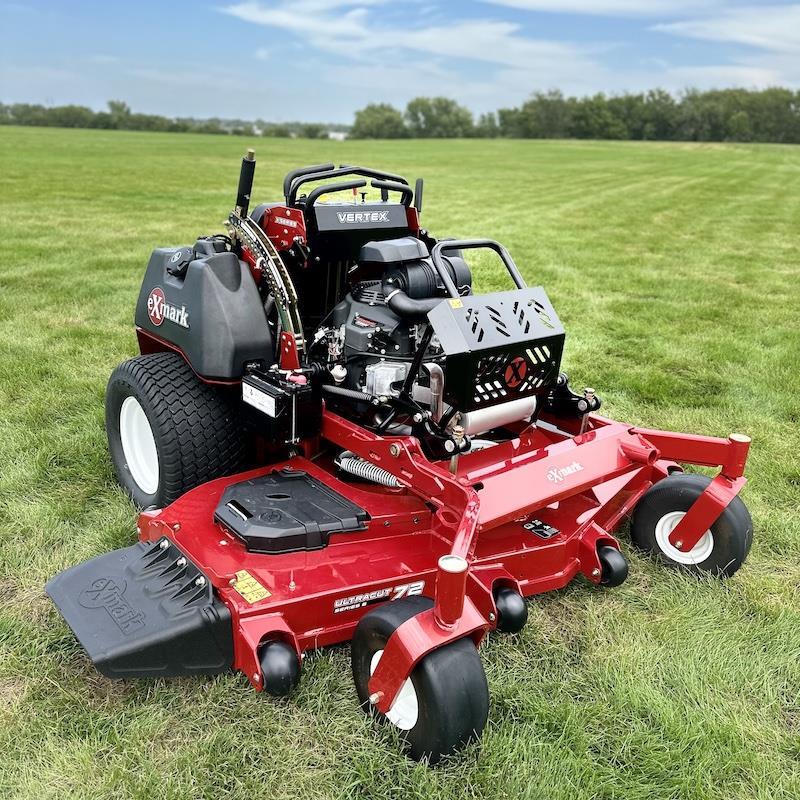

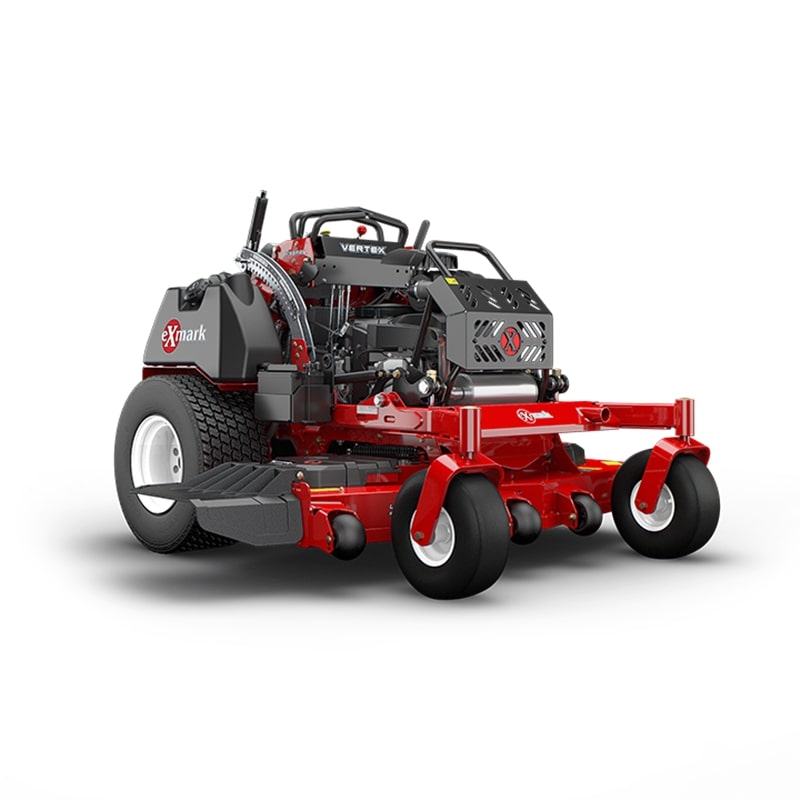

Designed to raise the bar for stand-on mower performance and productivity, Vertex X-Series uses the same formed and welded tubular steel frame and heavy-duty 15-inch casters as our premier Lazer Z zero-turn riding mowers. With carbureted Kawasaki FX1000 engines, you'll have the power to finish jobs faster, with a better quality of cut thanks to our unmatched UltraCut cutting decks. One look and it's easy to see why the Vertex X-Series is the next generation of stand-on mowers.

Features:

Professional Productivity

When equipped with the 72-inch UltraCut Series 6 cutting deck, Vertex X-Series can cut more than seven acres per hour, with Exmark’s signature quality of cut. Adjust cut height quickly and easily from 1.5- to 5.0-inches with the single-point height of cut adjustment system. And with 14-gallons of fuel capacity, Vertex X-Series delivers maximum runtime between fill-ups.

Operator Focused Design

The Vertex X-Series optimizes operator comfort with bolstered operator pad and suspended operator platform located low and centered between the rear wheels. When combined with the easy-to-use dual-action controls, you’ll feel balanced and in control of any situation.

Engineered for Low Maintenance

We engineered Vertex X-Series to run all season without maintenance, virtually eliminating productivity killing in-season downtime. And when it’s time for maintenance, we’ve made it easy to do with features including a magnetic operator pad that’s removable without tools, and an open architecture that enables easy access to the engine and hydro drive system.

Specifications:

Engine

• Brand: Kawasaki
• Model: FX1000V
• Series: V-Twin
• Displacement: 999 cc
• Fuel System: Carbureted
• Speed: Infinitely variable
• Forward: 0–12.0 mph
• Reverse: 0–5.0 mph
• Engine Speed: 3,600 rpm
• Air Filter: Heavy-duty canister
• Fuel Type: Gas
• Fuel Capacity: 14-gallon dual tanks (RH and LH)

Transmission

• Brand: Hydro-Gear
• Type: Hydrostatic
• Drive System: Hydro-Drive
• Drive Description: Two Hydro-Gear 16 cc pumps powering two 17.8 cu in motors
• Transmission Speeds: Infinitely variable
• PTO Engagement: Warner 250 ft-lb clutch
• Drive Wheel Release: Allows movement without engine running

Cutting Deck

• Deck Style: Floating (UltraCut Series 6)
• Deck Construction: 10-gauge formed and seam-welded top, 7-gauge side skirts
• Cutting Width: 52"
• Cutting Heights: 1.5" – 5.0" in 0.25" increments
• Blades: 3 blades, each 18"
• Blade Tip Speed: ~18,500 fpm
• Deck Lift: Single point HOC with mechanical lift-assist springs
• Discharge Options: Side discharge standard, optional mulch or bag

Other Features

• Fuel Indicator: Float gauge
• Safety Package: Operator Presence Controls (OPC) with interlock indicators
• Carb Compliant: No

Dimensions

• Width: 64.79"
• Height: 48.75"
• Length: 70.45"
• Curb Weight: 1,250 lbs
