Description:

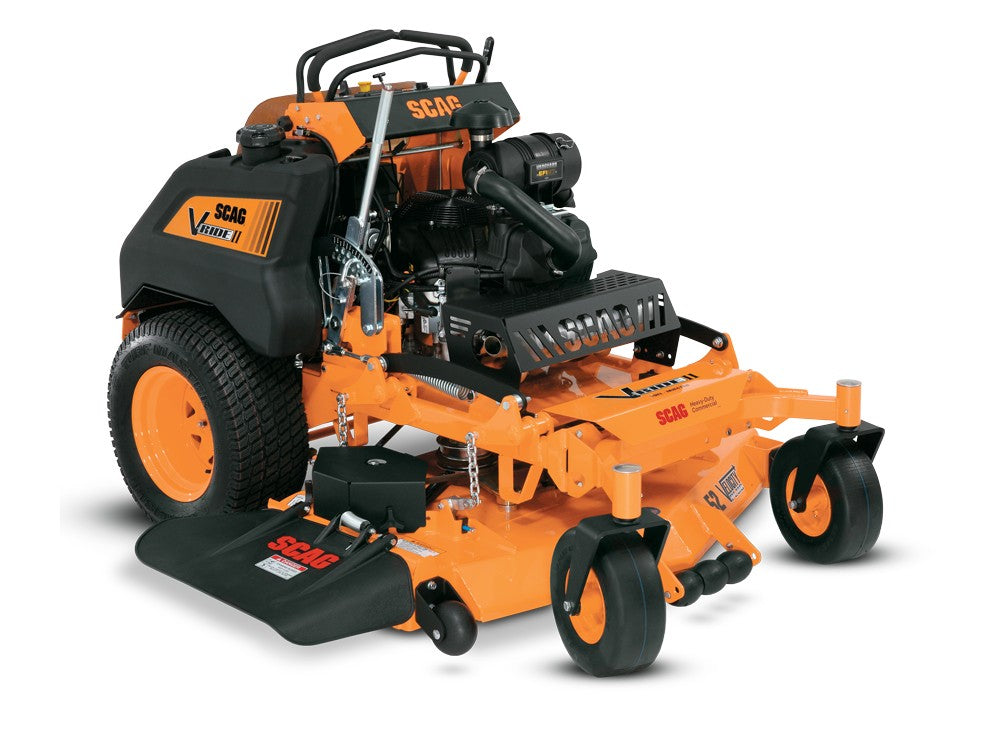

Featuring a comfortable operator platform with first-class suspension that minimizes fatigue, the V-Ride II™ delivers a natural, intuitive and smooth riding position the entire day. With unrivaled performance, stability and durability, this machine helps keep you in tip-top condition to get the job done day after day, year after year.

Specifications:

• Deck Size: 36″
• Engine: Kawasaki® FX Series
• Horsepower: 19 hp

Dimensions

• Length: 65.25″
• Tracking Width: 32″
• Width (chute down): 43″
• Width (chute in transport position): 33.75″
• Height: 47″
• Weight: 818 lb

General

• Total Fuel Capacity: 6.75 gallons
• Drive Tires: 20″ x 8″-10″
• Caster Tires: 11″ x 4″-5″
• Seat: Extra-large comfort cushion

Drive System

• Drive System Type: Dual Pump and Motor
• Pumps: Hydro-Gear 10 cc
• Motors: Parker 12 ci
• Forward Ground Speed: 8.5 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever

Deck

• Cutting Widths: 36″
• Type: Velocity Plus™
• Cutting Height: 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Hand lever
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles.
• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement: Ogura GT2.5 (150 ft lb)
• Adjustable air-gap for extended life
